Springboot Simple Project - Student Results Management System

My project is a Student Results Management System. It involves managing students and their results for different subjects. The key components of my project are:

  1. Entities: Student and Result
  2. Repositories: Interfaces for data access
  3. Services: Business logic layer
  4. Controllers: REST APIs for handling HTTP requests
  5. Configuration: Database and other configurations

1. Entities

Entities represent the tables in your database. Let's look at your entities and understand the annotations used.

Student Entity:


Annotations:

  • @Entity: Marks the class as a JPA entity.
  • @Table(name = "students"): Specifies the table name in the database.
  • @Id: Denotes the primary key.
  • @GeneratedValue(strategy = GenerationType.IDENTITY): Specifies the generation strategy for the primary key.
  • @OneToMany(mappedBy = "student", cascade = CascadeType.ALL, orphanRemoval = true): Defines a one-to-many relationship with the Result entity. The mappedBy attribute indicates that the student field in the Result entity owns the relationship.
Result Entity:


Annotations:

  • @ManyToOne: Defines a many-to-one relationship with the Student entity.
  • @JoinColumn(name = "student_id", nullable = false): Specifies the foreign key column.

2. Repositories

Repositories provide the mechanism for storage, retrieval, and search behavior.

StudentRepository:


ResultRepository:


Explanation:

  • JpaRepository: Provides JPA related methods such as saving, deleting, and finding entities.
  • @Repository: Marks the interface as a Spring Data repository.

3. Services

Services contain the business logic of the application.

ResultService Interface:


ResultServiceImpl:




Annotations:

  • @Service: Marks the class as a Spring service.

4. Controllers

Controllers handle HTTP requests and return responses.

ResultController:


Annotations:

  • @RestController: Marks the class as a REST controller.
  • @RequestMapping: Maps HTTP requests to handler methods.
  • @PostMapping, @GetMapping: Maps HTTP POST and GET requests respectively.
  • @RequestBody: Binds the HTTP request body to a method parameter.
  • @PathVariable: Binds a method parameter to a URI template variable.

Programming Techniques and Patterns

Let's cover some important programming techniques, patterns, and principles.

1. Dependency Injection

Dependency Injection (DI) is a design pattern used to implement IoC (Inversion of Control). It allows the creation of dependent objects outside of a class and provides those objects to a class through different ways.

In Spring Boot, DI is achieved through annotations like @Autowired, @Service, @Repository, etc.

2. RESTful APIs

REST (Representational State Transfer) is an architectural style for designing networked applications. RESTful APIs use HTTP requests to perform CRUD operations.

3. SOLID Principles

SOLID is an acronym for five design principles that help developers build more maintainable and flexible software.

  1. Single Responsibility Principle (SRP): A class should have only one reason to change.
  2. Open/Closed Principle (OCP): Software entities should be open for extension but closed for modification.
  3. Liskov Substitution Principle (LSP): Objects of a superclass should be replaceable with objects of a subclass without affecting the correctness of the program.
  4. Interface Segregation Principle (ISP): Clients should not be forced to depend on interfaces they do not use.
  5. Dependency Inversion Principle (DIP): High-level modules should not depend on low-level modules. Both should depend on abstractions.

4. Repository Pattern

The repository pattern is a design pattern that mediates data access and business logic. It provides a collection-like interface for accessing domain objects.

5. Service Layer Pattern

The service layer encapsulates the business logic of the application. It defines application boundary and organizes domain logic.

Practical Implementation

Let's go through a practical implementation of saving a result and fetching results by student ID.

  1. Save Result:

    • The client sends a POST request to /api/results with a JSON body containing the result details.
    • The ResultController receives the request and calls the saveResult method of ResultService.
    • The ResultService checks if the student exists and saves the result.

  2. Get Results by Student ID:

    • The client sends a GET request to /api/results/student/{studentId}.
    • The ResultController receives the request and calls the getResultsByStudentId method of ResultService.
    • The ResultService fetches the results from the mock API and returns them.

Programming Techniques, Coding Patterns, and SOLID Principles

Dependency Injection

As mentioned earlier, Dependency Injection (DI) is used to manage the dependencies of classes. Spring Boot simplifies DI with annotations like @Autowired, @Service, @Repository, etc.

Example:


RESTful API Design

RESTful APIs use standard HTTP methods for CRUD operations:

  • GET: Retrieve resources
  • POST: Create resources
  • PUT: Update resources
  • DELETE: Delete resources
Example:

SOLID Principles

  1. Single Responsibility Principle (SRP) Each class should have only one responsibility. For example, the Student and Result entities each represent a specific table in the database, and the service classes contain business logic.

  2. Open/Closed Principle (OCP) Classes should be open for extension but closed for modification. You can extend the ResultService with additional methods without modifying its existing code.

  3. Liskov Substitution Principle (LSP) Subtypes must be substitutable for their base types. The ResultService interface and its implementation ResultServiceImpl adhere to this principle.

  4. Interface Segregation Principle (ISP) Clients should not be forced to depend on methods they do not use. The ResultService interface defines only the methods relevant to result management.

  5. Dependency Inversion Principle (DIP) High-level modules should not depend on low-level modules but on abstractions. This is achieved by injecting the repository interfaces into the service classes.

Repository Pattern

The repository pattern abstracts data access logic and provides a collection-like interface for accessing domain objects.

Example:



Algorithms and Data Structures

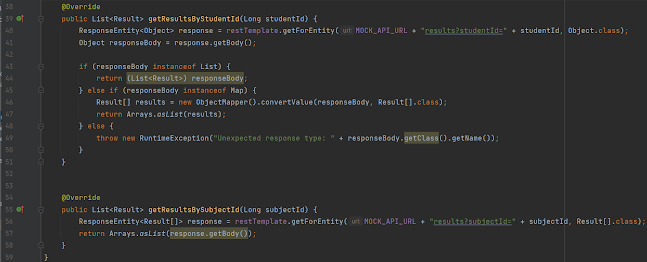

  1. Fetching Data from External APIs: You use RestTemplate to fetch data from an external mock API. The response is then deserialized into a list of Result objects.

Example:


  1. Error Handling: Implementing proper error handling ensures the application behaves predictably in case of failures. For instance, handling the case when a student ID is not found.

Example:



Summary

By following these principles, patterns, and techniques, we can create a robust and maintainable Spring Boot application. Here's a recap of what we've covered:

  • Entities: Mapping Java objects to database tables.
  • Repositories: Abstracting data access logic.
  • Services: Encapsulating business logic.
  • Controllers: Handling HTTP requests and responses.
  • Dependency Injection: Managing dependencies.
  • RESTful API Design: Designing networked applications.
  • SOLID Principles: Creating maintainable and flexible software.
  • Repository and Service Layer Patterns: Organizing code for better separation of concerns.
  • Algorithms and Data Structures: Implementing practical solutions for common problems.
